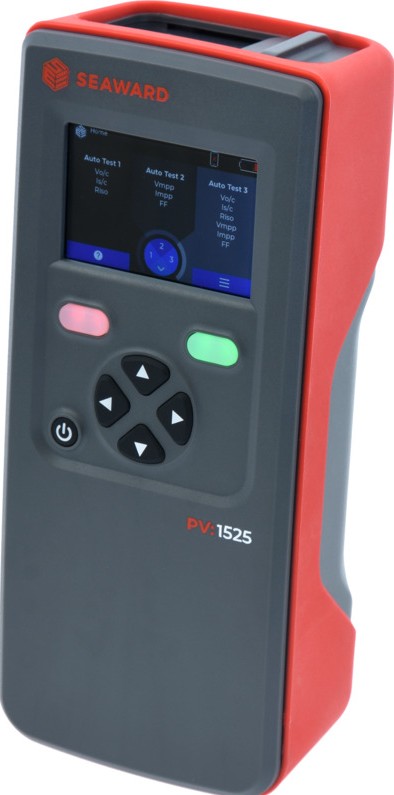

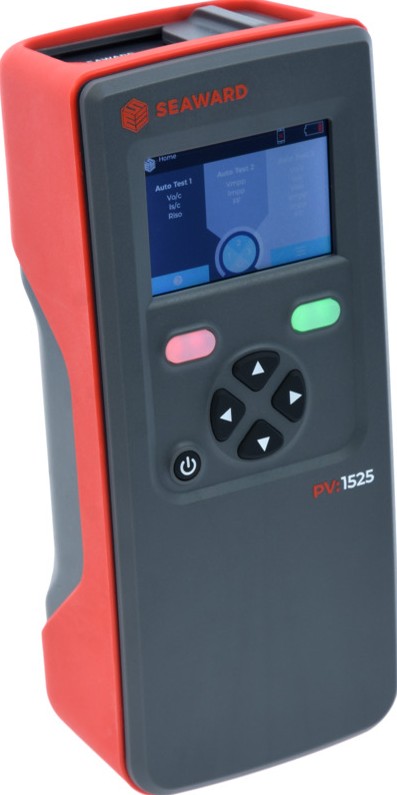

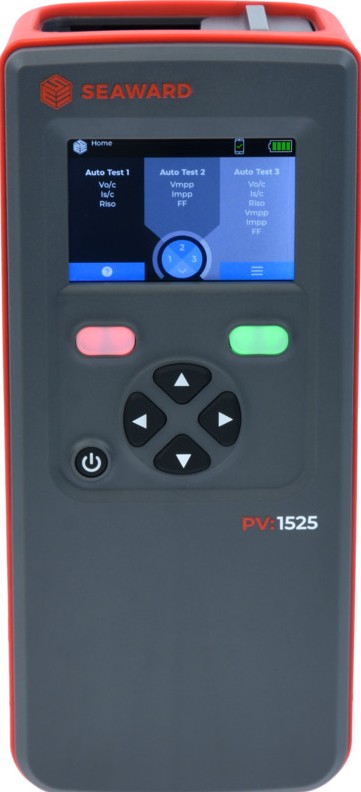

Seaward PV 1525 KIT – Complete set for electrical PV safety testing up to 1500 V

Price for the complete set: € 2,800.00 net

When PV systems get bigger, voltage and currents increase – as do the requirements for testing technology and documentation. The Seaward PV 1525 KIT was developed for installers as well as service and O&M teams who want to work safely, efficiently and cleanly documented – from e-checks during commissioning to troubleshooting in existing systems.

Your advantages at a glance

• Future-proof up to 1500 V DC / 25 A DC: Uoc/Isc measurement also for modern 1500 V strings.
• All core tests in one device:
  • Protective conductor continuity (low resistance, >200 mA)
  • Insulation measurement (250/500/1000/1500 V, up to 999 MΩ)
  • Open-circuit voltage & short-circuit current on the PV string
• More measured value context in the field: Thanks to the SS:200LR, you can record irradiation, temperature, roof pitch and orientation, among other things – wirelessly integrated.
• Operating current & power without tangled cables: With the PV:1500 Clamp you can measure up to 400 A DC and up to 600 kW (wireless).
• Documentation without detours: Internal memory (1000 slots), Bluetooth transfer to the PV:Sync Mobile app, export to the software; firmware updates “over the air”.

Technical highlights (excerpt)

• Safety/robustness: CAT III / 1500 V, IP40
• Display & handling: 3.5″ color display, illuminated buttons, approx. 1 kg, 265×115×78 mm
• Power supply: Li-Ion battery 2930 mAh (rechargeable)

Scope of delivery (KIT)

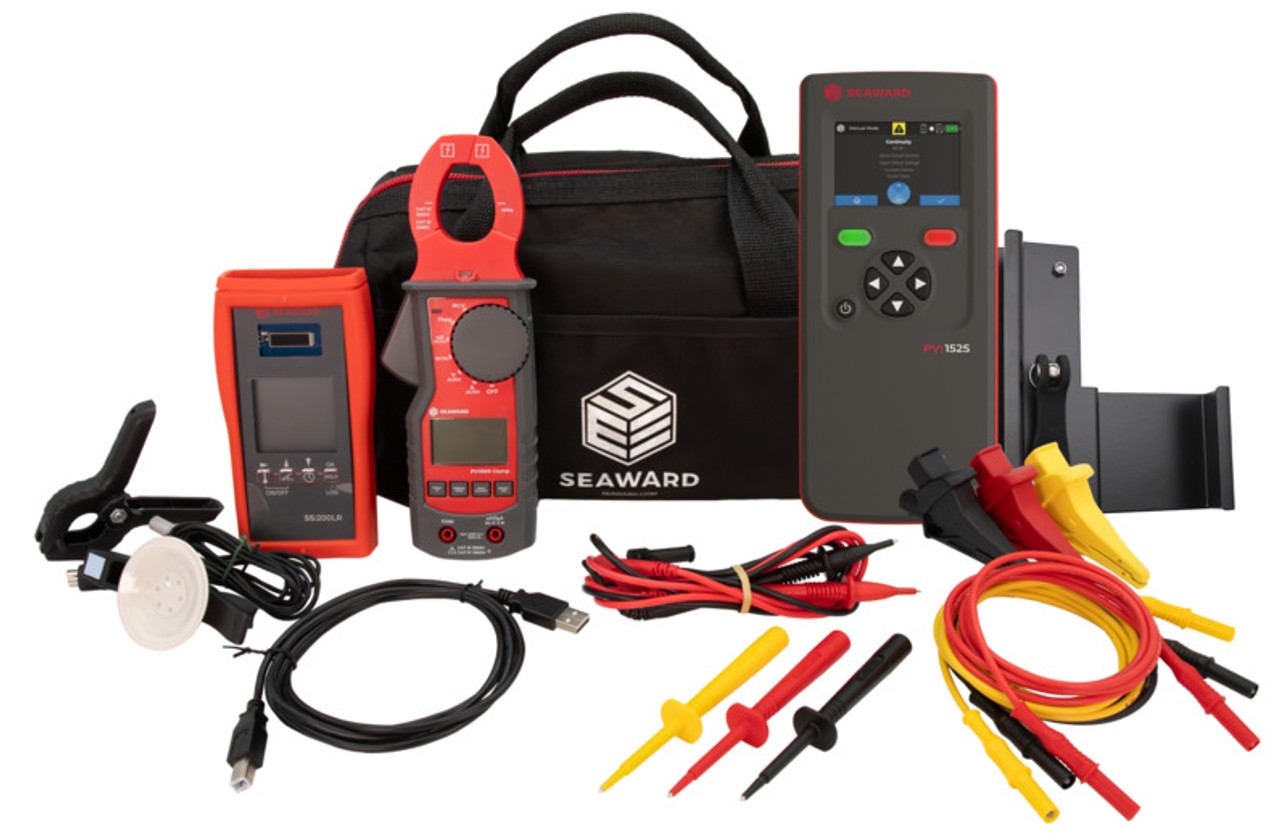

The set includes PV:1525, MC4 test cable, test probes, battery/charging cradle, carrying case, PV:1500 clamp, SS:200LR wireless irradiance meter, solar survey accessories and SolarCert software license.

Typical use cases

• Commissioning and acceptance tests (string checks, insulation, continuity)
• Maintenance/inspection with clean measured value documentation
• Troubleshooting for yield problems (measured values + irradiation/temperature for better classification)
